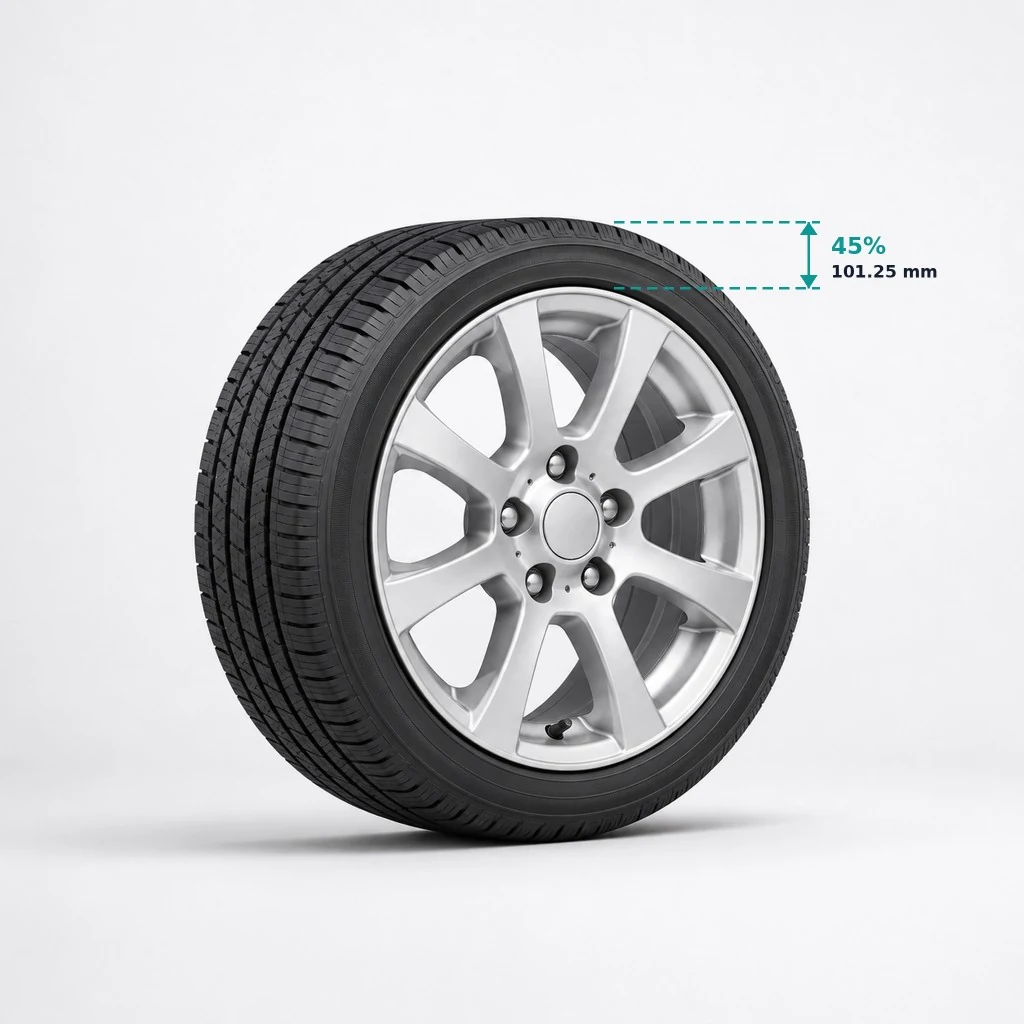

45% aspect ratio
101.25 mm sidewall
24.97 in overall
On this page
Tire size guide
Tire Aspect Ratio Explained
The aspect ratio is the sidewall height expressed as a percentage of the tire's nominal section width. On 225/65R17, 65% of 225 mm is 146.25 mm of nominal sidewall.
Signature example
225 / 65 R17
65% of 225 mm = 146.25 mm nominal sidewall height
Width 225 mm
Aspect ratio 65%
Sidewall 146.25 mm
Same width, different aspect ratio
These sizes all use a 225 mm nominal width and 17-inch wheel. Only the aspect ratio changes.

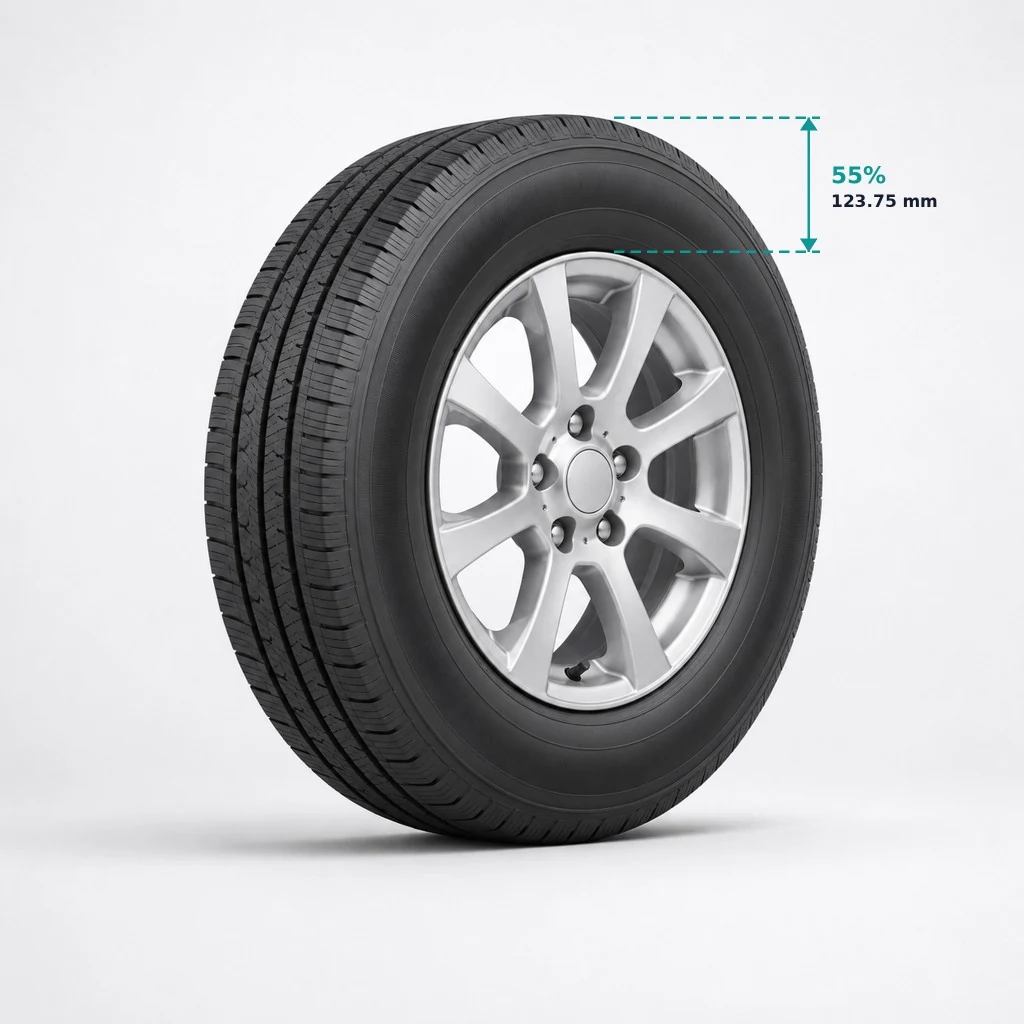

55% aspect ratio
123.75 mm sidewall
26.74 in overall

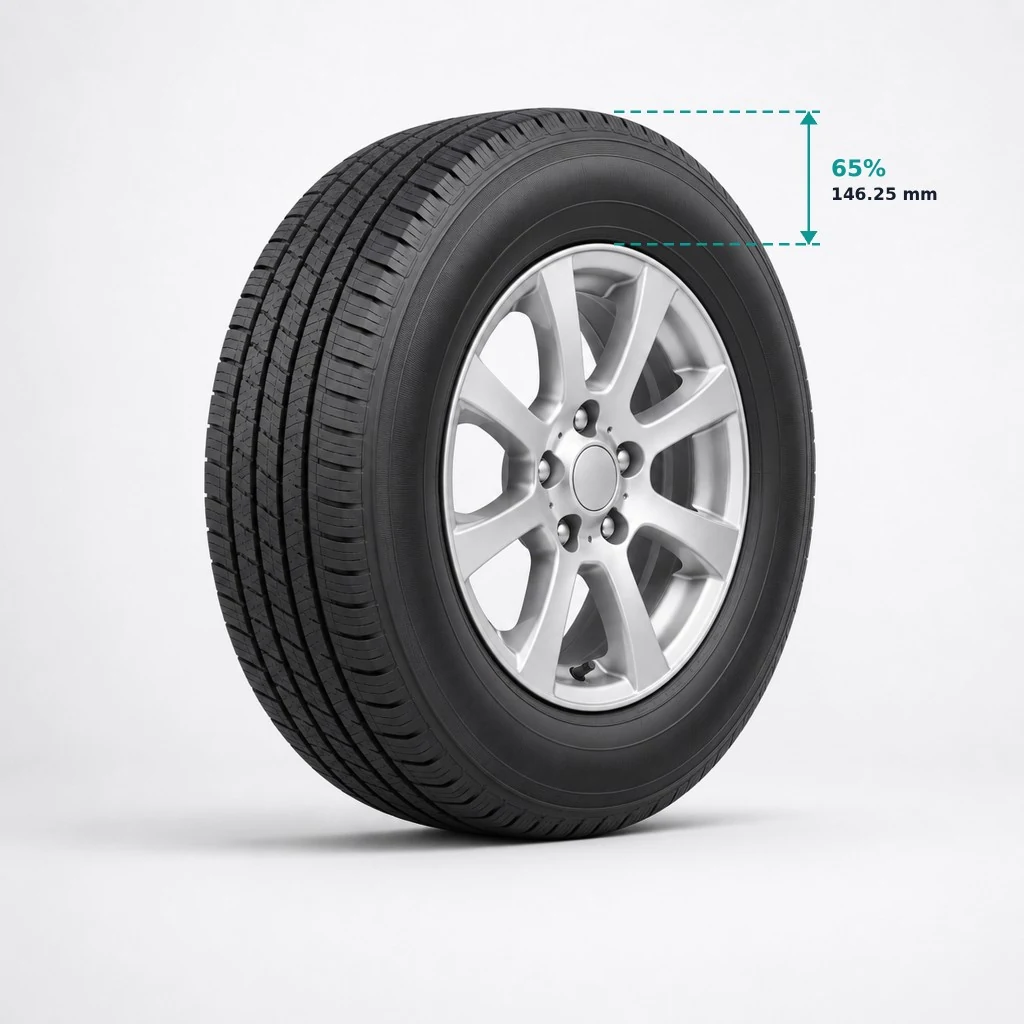

65% aspect ratio
146.25 mm sidewall
28.52 in overall
- 45 → shortest sidewall
- 55 → middle
- 65 → tallest sidewall
Higher ratio means the sidewall is a larger percentage of the same section width.
How aspect ratio is calculated
How sidewall height is calculated
225/65R17
225 mm × 65%
= 146.25 mm
= 5.76 in
Aspect ratio is dimensionless; 65 does not mean 65 mm.
Sidewall height = section width × aspect ratio ÷ 100. That is the same helper used by the Tire Size Calculator. See also How to Read Tire Sizes.
How aspect ratio changes overall diameter
225/45R17 versus 225/55R17 — same width, same 17-inch wheel, 10-point aspect-ratio change.
Measure 225/45R17 225/55R17 Change
Sidewall 101.25 mm 123.75 mm 22.50 mm
Overall diameter 24.97 in 26.74 in 1.77 in (7.1%)
Circumference 78.45 in 84.02 in 5.57 in
Revs / mile 808 754 -54
Speedometer at 60 60 mph indicated 64.3 mph true if calibrated to 225/45R17 7.1%
Higher aspect ratio Taller sidewall Larger overall diameter
IF width and wheel diameter remain unchanged.
Compare any pair in the Tire Size Comparison Calculator.
Dimensional effects vs vehicle behavior
Dimensional effects
These are mathematically derivable:
- Sidewall height
- Overall diameter
- Circumference
- Revolutions per mile
- Speedometer relationship
Vehicle behavior
These are context-dependent:
- Ride
- Steering response
- Handling feel
- Noise
- Comfort
Handling and ride
Lower aspect ratio
Potential characteristics
- Shorter sidewall
- Less sidewall deflection
- Steering response may feel sharper
Tire construction, pressure, width, compound, wheel and suspension matter. A shorter sidewall can reduce sidewall deflection in a given corner, which some drivers feel as quicker steering response — but aspect ratio alone does not determine handling.
Higher aspect ratio
Potential characteristics
- Taller sidewall
- Greater sidewall compliance
- May absorb some impacts differently
Ride quality depends on the complete tire/vehicle system. A taller sidewall can absorb more vertical travel before the wheel and suspension take the hit, but ride quality still depends on tire construction, pressure, unsprung mass, and the vehicle’s suspension. Aspect ratio is one input, not a comfort rating.
Can you change tire aspect ratio?
225/45R17 225/55R17
- Sidewall ↑
- Diameter ↑
- Circumference ↑
You can specify a different aspect ratio, but that changes sidewall height and, unless width or wheel diameter also change, overall diameter. Diameter change affects speedometer reading, gearing, and clearance.
Changing aspect ratio usually changes overall diameter unless another dimension also changes. Follow the vehicle manufacturer’s requirements.
Similar diameter, different aspect ratios
These catalog sizes land near the same overall diameter with different width / aspect / wheel combinations. Similar diameter is not a fitment approval.
How manufacturers use different aspect ratios
Some vehicle families use a taller sidewall with a smaller wheel and a shorter sidewall with a larger wheel across different factory configurations. These are documented OEM applications — not interchangeability.
FAQ
What does a 65 aspect ratio mean?
The sidewall height is 65% of the tire’s nominal section width. On 225/65R17 that is 225 × 0.65 = 146.25 mm nominal sidewall height.
Is a higher tire aspect ratio better?
Higher is not universally better. A taller sidewall can add more vertical deflection, but comfort, handling, and durability also depend on construction, compound, pressure, width, and the vehicle.
Can I use 55 instead of 65?
Only if the resulting overall diameter, load capacity, speed rating, and wheel width remain acceptable for the vehicle. Changing aspect ratio on the same wheel changes diameter. Follow the tire placard and compare sizes before buying.
Does aspect ratio affect tire diameter?
Yes, when width and wheel diameter stay the same. Sidewall height scales with aspect ratio, and overall diameter includes two sidewalls plus the wheel.
Does aspect ratio affect speedometer accuracy?
Speedometer error tracks overall diameter, not aspect ratio by itself. If a new aspect ratio changes diameter, indicated speed will diverge from true speed unless another dimension compensates.
What aspect ratio is considered low profile?
There is no single industry cutoff used by TireReference. Lower numbers mean a shorter sidewall relative to width. Compare the actual calculated sidewall and diameter rather than relying on a category label.
